Height Adjustable Movable Telescopic Belt Conveyor For Package Truck

Telescopic belt conveyors can be used to load, unload parcels, boxes, sacks & tires. An intuitive smart-pad on either side enables precise control of the elevation and telescopic movement.

Telescopic belt conveyor description

1.This equipment is mainly used for loading and unloading container trucks. It is widely used in bagged products, logistics distribution centers, postal express tires, and other industries.

2.Telescopic belt machine adds a telescopic mechanism to the ordinary ribbon conveyor. So the conveyor can flexible on the length direction freely to achieve the effect of controlling conveyor length at any time. If add a lifting device at the bottom of the machine, users can also control the end height of the conveyor at any time.

3.The telescopic belt conveyor can be used separately to finish loading and unloading goods in both forward and reverse directions.

4. We can add four legs to the equipment to meet the different heights of containers and trucks.

1. Reduce the distance between the manual and the handling material
2. Shorten the time of loading and unloading
3. Reduce the rate of damage and broke down

Telescopic Belt Conveyor​ Features
1.The telescopic belt conveyor is mainly composed of a fixed part, movable part, synchronous telescopic thrust mechanism, belt conveyor mechanism, protective rod mechanism, and control system. The fixed part and movable part are made of manganese steel with a thickness of 6 mm / 5 mm.

2.The fore-end shall be rigidly constructed to withstand the impact load during loading and unloading of luggage. The length should not be less than 300 mm (gravity roller conveyor inside the telescopic machine), should be zinc coated on the surface of the drum.

3.It has the function of expanding while conveying the goods to improve the conveying efficiency and has the point to point working mode.

4.The front button has a protective baffle, which can effectively protect the button and prevent the button from being damaged when the belt conveyor is expanding and contracting.

5.The front end of the telescopic machine is equipped with an anti-collision rod.

6.The front end should be equipped with LED lights to ensure the brightness of the truck during loading and unloading.

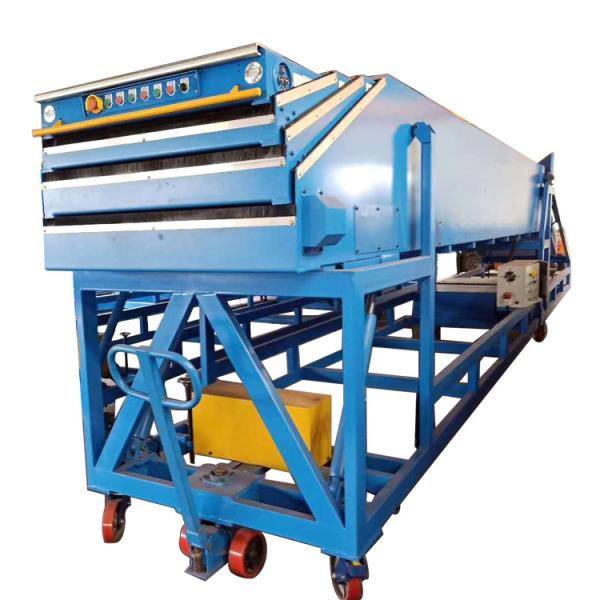

The following pictures are just for showing the stretching and retraction status of the telescopic conveyor.
