    Sludge Coal Truck Loading Unloading Belt Conveyor

    Ask Lasest Price
    Brand Name : BETTER CONVEY
    Model Number : Wheel Conveyor
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 1000pcs/month
    Delivery Time : 25days
    • Product Details
    • Company Profile

    Sludge Coal Truck Loading Unloading Belt Conveyor

    Sludge Loading Unloading Coal Belt Bulk Materials Telescopic Conveyor ​


    Telescopic Belt Conveyor​ Features
    1.The telescopic belt conveyor is mainly composed of a fixed part, movable part, synchronous telescopic thrust mechanism, belt conveyor mechanism, protective rod mechanism, and control system. The fixed part and movable part are made of manganese steel with a thickness of 6 mm / 5 mm.
    2.The fore-end shall be rigidly constructed to withstand the impact load during loading and unloading of luggage. The length should not be less than 300 mm (gravity roller conveyor inside the telescopic machine), should be zinc coated on the surface of the drum.
    3.It has the function of expanding while conveying the goods to improve the conveying efficiency and has the point to point working mode.
    4.The front button has a protective baffle, which can effectively protect the button and prevent the button from being damaged when the belt conveyor is expanding and contracting.
    5.The front end of the telescopic machine is equipped with an anti-collision rod.
    6.The front end should be equipped with LED lights to ensure the brightness of the truck during loading and unloading.


    Max. Loading WeightRunning: 60Kg/M, Stop: 150Kg/M
    Running DirectionTwo Directions
    Driving MotorSEW / NORD
    Extending MotorSEW / NORD With Brake
    Frame Material16 Mn
    Surface TreatmentEpoxy Resin Spraying
    Rotary BearingSKF Joint Bearing
    LightingLED Lights
    Lifting Angle
    BeltPVK
    Conveying Speed20~35m/Min

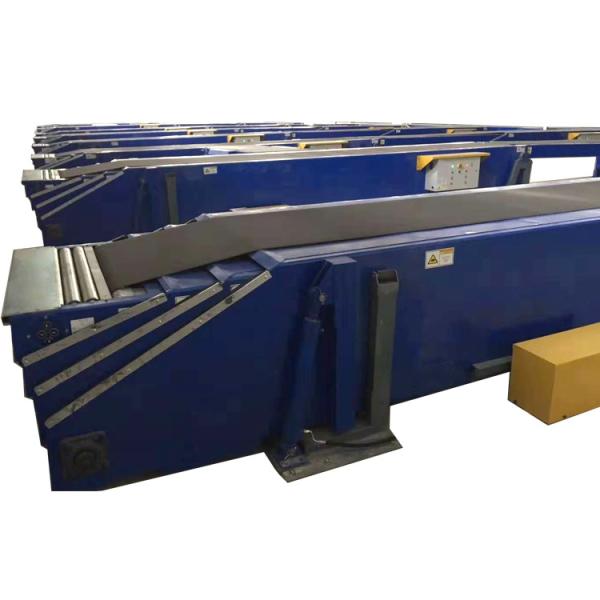

    Sludge Coal Truck Loading Unloading Belt ConveyorSludge Coal Truck Loading Unloading Belt Conveyor


    1. Running smoothly.
    2. Easy installation,easy operating.
    3. Lowest maintenance cost.
    4. Capacity adjustable.
    5. All design and dimention can be customized.
    6. Smooth belt surface.
    7. Easy to maintain and clean.

    The telescopic belt conveyor is added to the common belt conveyor, which makes the belt conveyor freely retractable in the length direction. Users can adjust the button according to their own requirements to control the length of the conveyor at any time. In the model with automatic lifting device, the user can also control the height of the telescopic belt conveyor end at any time. telescopic belt conveyor is mainly used in vehicle loading and unloading and material transmission system with telescopic requirements. It shortens the distance of manual transportation of materials, shortens the loading and unloading time, reduces the labor intensity, reduces the damage of goods, reduces the loading and unloading cost, and improves the work efficiency. the telescopic belt conveyor can be operated in two directions to transport materials. the telescopic belt conveyor can be used with other conveying equipment and material sorting system to realize the automatic production of materials in and out of storage or vehicle loading and unloading, especially in tobacco industry.

    A telescopic belt conveyor is an effective and ergonomic alternative to labor-intensive routines. Operators can move heavy or awkward packages into or out of a container/truck rapidly – and with little effort. telescopic belt conveyors can be used to load/unload any type of loose-loaded cargo - typically parcels, boxes, sacks & tires. An intuitive smart-pad on either side enables precise control of the boom's elevation and telescopic movement. Push buttons at the operator end of the boom control activation, lights, belt direction, etc.



    Telescopic Belt Conveyor characteristics
    1. Wear a belt, long service life, durable.
    2. Heavy structural frames and supports
    3. conveyor is suitable for long-distance transportation.
    4. In terms of Angle control, the driving motor has a braking function to prevent the goods from falling due to gravity.
    5. conveyor handling system is a customized conveying system.

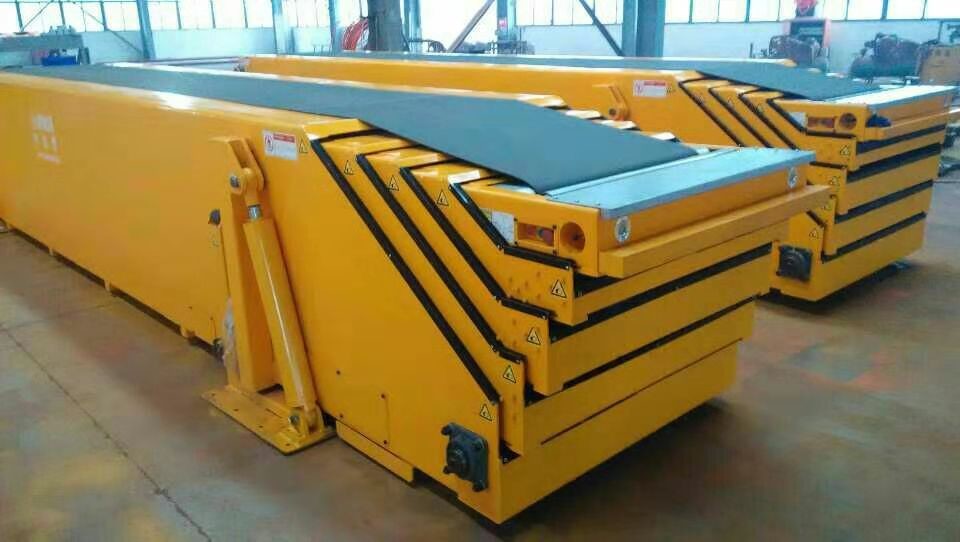

    The following pictures are just for showing the stretching and retraction status of the telescopic conveyor.

    fixed length
    5m/6m/7m/7.5m(choice from during)
    extension length
    10m/12m/12.6m/14.6m/15m/18.6m/21.6m/22m/23.5m/25m
    total length
    10m/12m/14.6m/15m/18.6m/21.6m/23.5m/22m/25m
    belt width
    600mm/800mm
    overall width
    1270mm/1470mm
    conveyor height
    1000mm
    conveying direction
    reversible
    tilting
    0-5degree adjustable by hydraulic
    max loading capacity
    60kg/meter
    Speed range
    10-36m/min with adjust
    voltage
    220-480V 3P 50/60HZ
    Motor brand
    SEW(Germany)
    Electrical appliances
    Schneider(France)
    bearing brand
    NSK(Japan)
    chain brand
    KMC(China)
