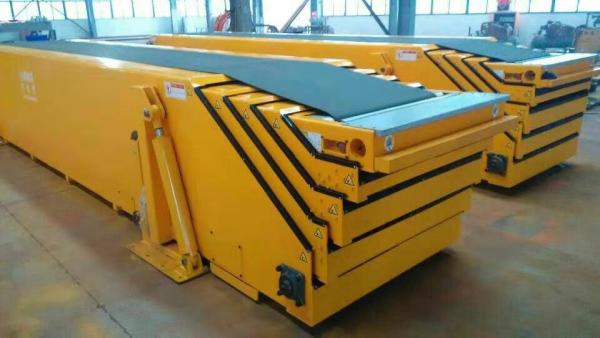

Portable Mobile Material TransportationTelescopic Belt Conveyor

Belt conveyor and roller combine together. It helps products conveying from the earth to the upstairs by reaching into/onto the trucks and containers. Belt conveyors carry individual products to and from packing/packaging stations or can form full production lines.

Telescopic Belt Conveyor characteristics

1. Wear a belt, long service life, durable.

2. Heavy structural frames and supports

3. conveyor is suitable for long-distance transportation.

4. In terms of Angle control, the driving motor has a braking function to prevent the goods from falling due to gravity.

5. conveyor handling system is a customized conveying system.

1. Running smoothly.
2. Easy installation,easy operating.
3. Lowest maintenance cost.
4. Capacity adjustable.
5. All design and dimention can be customized.
6. Smooth belt surface.
7. Easy to maintain and clean.

Telescopic Belt Conveyor​ Features
1.The telescopic belt conveyor is mainly composed of a fixed part, movable part, synchronous telescopic thrust mechanism, belt conveyor mechanism, protective rod mechanism, and control system. The fixed part and movable part are made of manganese steel with a thickness of 6 mm / 5 mm.

2.The fore-end shall be rigidly constructed to withstand the impact load during loading and unloading of luggage. The length should not be less than 300 mm (gravity roller conveyor inside the telescopic machine), should be zinc coated on the surface of the drum.

3.It has the function of expanding while conveying the goods to improve the conveying efficiency and has the point to point working mode.

4.The front button has a protective baffle, which can effectively protect the button and prevent the button from being damaged when the belt conveyor is expanding and contracting.

5.The front end of the telescopic machine is equipped with an anti-collision rod.

6.The front end should be equipped with LED lights to ensure the brightness of the truck during loading and unloading.

A telescopic belt conveyor is an effective and ergonomic alternative to labor-intensive routines. Operators can move heavy or awkward packages into or out of a container/truck rapidly – and with little effort. telescopic belt conveyors can be used to load/unload any type of loose-loaded cargo - typically parcels, boxes, sacks & tires. An intuitive smart-pad on either side enables precise control of the boom's elevation and telescopic movement. Push buttons at the operator end of the boom control activation, lights, belt direction, etc.

The following pictures are just for showing the stretching and retraction status of the telescopic conveyor.
