Gravity Roller Conveyor
Specification of Gravity Roller Conveyor
| Name | Gravity Roller Conveyor |
| Model Number | BCRC-GRAVITY ROLLER CONVEYOR |
| Roller Diameter | 19mm, 25mm, 38mm, 50mm, 60mm, 76mm, 89mm |
| Roller Pitch | 30, 40, 50, 75, 100, 120, 150mm |
| Rack Size | 40x20x2, 60x30x2.5, 60x30x3, 90x30x3, 120x30x3mm |
| Loading Weight | 30~1200Kg |
| Power | 0KW-5KW |
| Drum Diameter | 58/76MM |
| Material Feature | Oil Resistant |
| Max Loading | 70kg/M |
| Conveyor Height | From 600-1200mm Adjust |
| Conveyor Width | 400~1000mm Optional |
| Conveyor Length After Extended | 3000mm Or Longer |
| Material | Stainless Steel/Carbon Steel/Galvanized Steel |
| Core Components | Motor, Bearing, Gear, Roller |
| Capacity | 10Kg-10Tons/Hour |
Gravity Roller Conveyor Catalogue
| Part number | "D"x thickness | d Shaft | "W" (mm) | Loading Kg | Material | Treatment |
| BCGR-01-Ø19 | Ø19*1.2 | Ø6 | 50~600 | 1~10 | Carbon steel Stainless steel Aluminum | Galvanized Chem-black PU lagging Rubberized Chrome |
| BCGR-01-Ø25 | Ø25*1.0 | Ø8 | 50~800 | 1~10 | ||
| BCGR-01-Ø38 | Ø38*1.5 | Ø12 | 80~800 | 35~80 | ||
| BCGR-O1-Ø50 | Ø50*1.5 | Ø12 | 80~1200 | 40~160 | ||
| BCGR-01-Ø60 | Ø60*2.0/2.5 | Ø12/Ø15 | 80~1200 | 60~300 | ||
| BCGR-01-Ø76 | Ø76*3.0/3.5 | Ø20 | 100~1500 | 180~550 | ||
| BCGR-01-Ø89 | Ø89*3.0/3.5 | Ø20 | 100~1500 | 350~ 700 |
Quick Details of Gravity Roller Conveyor
• 60-800kg/h capacity.
• Adjustable conveyor height and speed.
• 200-1000mm conveyor width.
• Available in any length to fit your applications.
• Self Tracking: Cartons follow the twists and turns of the
conveyor path without using engineered curves
• Square Tubing Legs:
• Casters with brakes: 5" x 1-1/2" swivel casters roll easily.
Caster brakes lock both wheel and swivel simultaneously while the
conveyor is in use.
• Adjustable Height: Simply turn the locking knob to raise and
lower the conveyor bed height.
• Side Plates: Aluminum alloy construction features a ribbed design
for added durability. Assembled with bolts and lock nuts.
How to order roller conveyor?
1. Tell us the conveying products size and weight.
2. The length x width x height of the roller conveyor and the total loading weight.
3. The material and surface treatment: depending on the different working environment, decide the material and surface treatment (such as galvanized, stainless steel, chem-black or rubber lagging).
4. The frame material: stainless steel, painting coated. Roller: stainelss steel, steel galvanized, PVC ect.

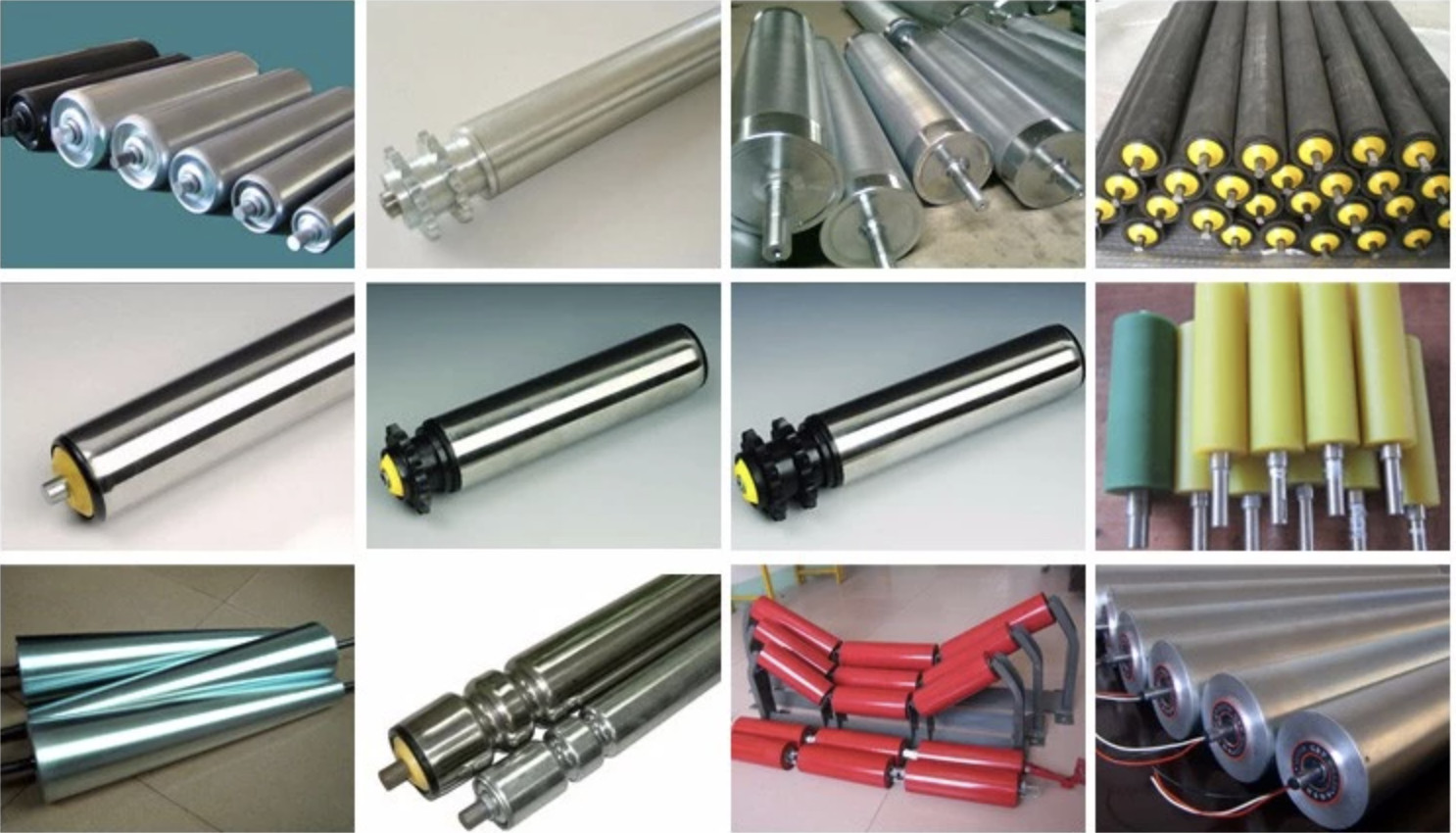

The length of rollers are customized, the standard diameters are
20mm, 25mm, 32mm, 38mm, 42mm,50mm, 57mm, 60mm, 76mm etc.
The diameters Of the turning conveyors are 300mm, 600mm, 900mm,
1200mm.
Frame of conveyor: Carbon steel painted, stainless steel or
aluminium.
Driving: Gear motor driving, electric motor driving.
Transmission mode: Single sprocket, two sprockets, O type belt,
Plane friction belt, Synchronous belt etc.
How to buy roller conveyors, please supply following data:
1. Length * wideth * height Of the conveying item.
2. The weight Of conveying unit.
3. The bottom shape Of the conveying item.
4. Any special working place (such as moisture, temperature or
chemical impact)
5. Gravity or motor drive.
To make sure the stable conveying, be sure to touch at least three rollers when conveying, If to convey thesoft bags, please put on the pallet when conveying.
|
|
